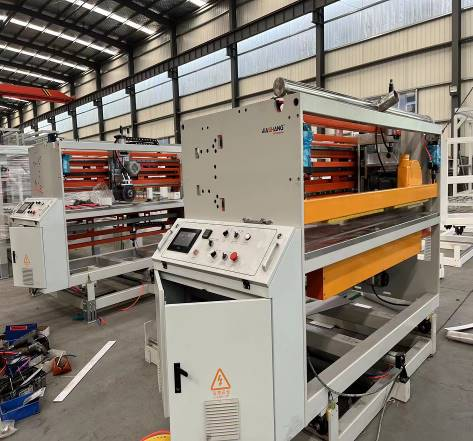

PVC Foam board Cutting Machine

Short Description:

PVC Foam board Cutting Machine

Cutting mode: Electric transverse cutting

Self locking motor: 0.75kw

Thickness of cut plate: 3-25mm

Cutting plate width: 1220 mm

Meter counting device: travel switch circuit control


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    This is two kinds cutter technical parameters :

    cutting machine (old type ) cutting machine (upgrade)two cutting method use blade and saw
    Cutting mode: Electric transverse cuttingSelf locking motor: 0.75kwThickness of cut plate: 3-25mmCutting plate width: 1220 mm

    Meter counting device: travel switch circuit control

    Length counting has the advantages of mechanical and pneumatic control of length and accurate length.

    Dust suction device is common to slitting

    length counter:korea Autonics

    over size :1470x2200x1900

    Overall size :1470x2500x1900mm with electrical box

    Clamping mode: pneumatic compression

    Cutter guide : aluminium alloy

    Variable frequency speed control knife

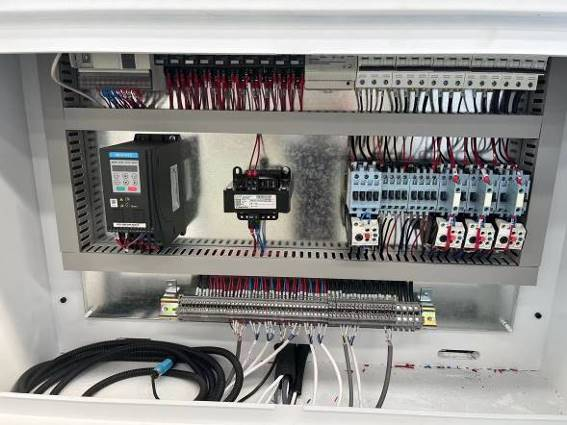

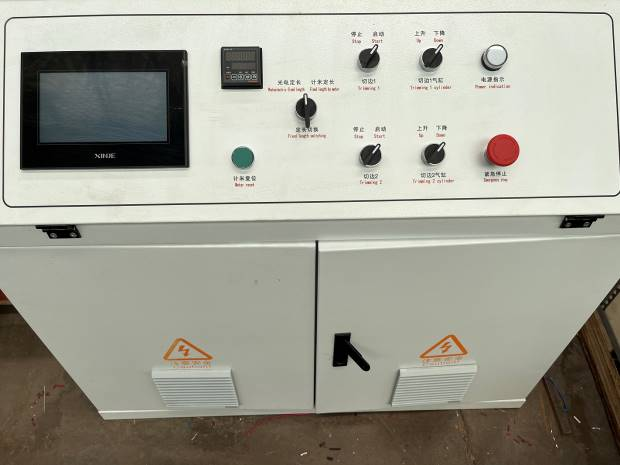

    PLC control (XINJE)

    Cutting mode: Electric transverse cuttingSelf locking motor: 0.75kw+075kwThickness of cut plate: 3-40mmCutting plate width: 1220 mm

    Meter counting device: travel switch circuit control

    Length counting has the advantages of mechanical and pneumatic control of length and accurate length.

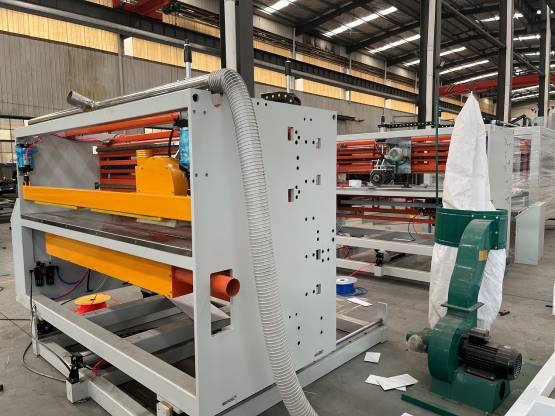

    Dust suction device is common to slitting

    length counter:korea Autonics

    Clamping mode: pneumatic compression

    Cutter guide : aluminium alloy

    Variable frequency speed control knife

    PLC control (XINJE)

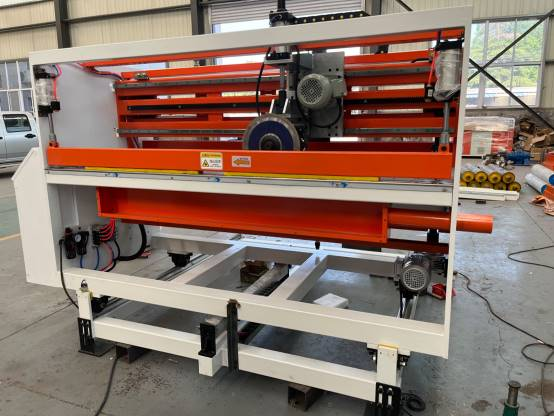

    4.7-2 another saw cutter method

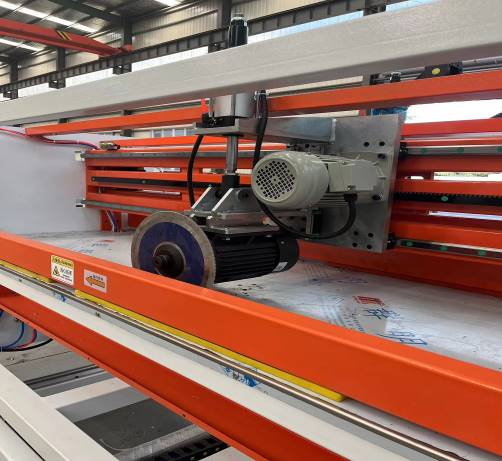

    Saw motor :2.2kw , dust extraction motor :3kw

    Lengthened guide design ,

    match pneumatic control ,use air cylinder quantity 8pcs

    Overall size :1950x2200x1900mm

    Overall size :1950x2500x1900mm with electrical box

    INOVANCE  frequency converter

    Main frame steel plate thickness:20MM
