what is new PVC Foam Cutting Machine advantage?

This is two kinds cutter technical parameters :

cutting machine (old type ) cutting machine (upgrade)two cutting method use blade and saw
Cutting mode: Electric transverse cuttingSelf locking motor: 0.75kw

Thickness of cut plate: 3-25mm

Cutting plate width: 1220 mm

Meter counting device: travel switch circuit control

Length counting has the advantages of mechanical and pneumatic control of length and accurate length.

Dust suction device is common to slitting

length counter:korea Autonics

over size :1470x2200x1900

Overall size :1470x2500x1900mm with electrical box

Clamping mode: pneumatic compression

Cutter guide : aluminium alloy

Variable frequency speed control knife

PLC control (XINJE)

Cutting mode: Electric transverse cuttingSelf locking motor: 0.75kw+075kw

Thickness of cut plate: 3-40mm

Cutting plate width: 1220 mm

Meter counting device: travel switch circuit control

Length counting has the advantages of mechanical and pneumatic control of length and accurate length.

Dust suction device is common to slitting

length counter:korea Autonics

Clamping mode: pneumatic compression

Cutter guide : aluminium alloy

Variable frequency speed control knife

PLC control (XINJE)

4.7-2 another saw cutter method

Saw motor :2.2kw , dust extraction motor :3kw

Lengthened guide design ,

match pneumatic control ,use air cylinder quantity 8pcs

Overall size :1950x2200x1900mm

Overall size :1950x2500x1900mm with electrical box

INOVANCE  frequency converter

Main frame steel plate thickness:20MM

Upgrade cutter advantages:



1.Upgrade cutter has two ways of cutting: blades and saw. Our costs have also increased

2.Upgrade cutter’s saw cutting function can cutter higher densities board over 0.6 and thicker up 40mm and t started trying test the machine uneven waste board,

Old type cutter only have blade cutting function ,it suitable densities below 0.6 and Thickness less than 20mm board.

3.Upgrade cutter can According to the thickness and density of the plate, freely change the cutting method .it is very More intelligent.

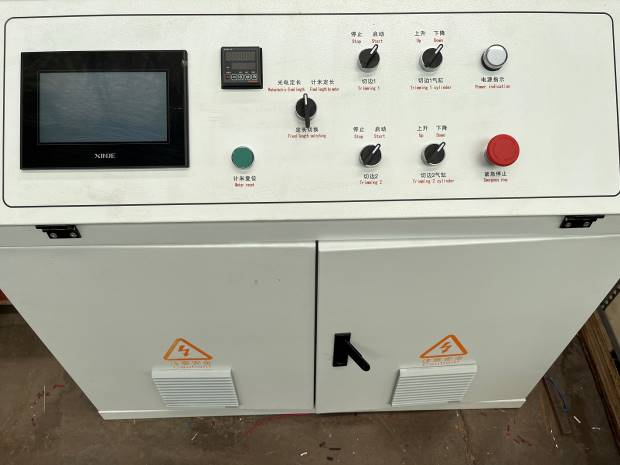

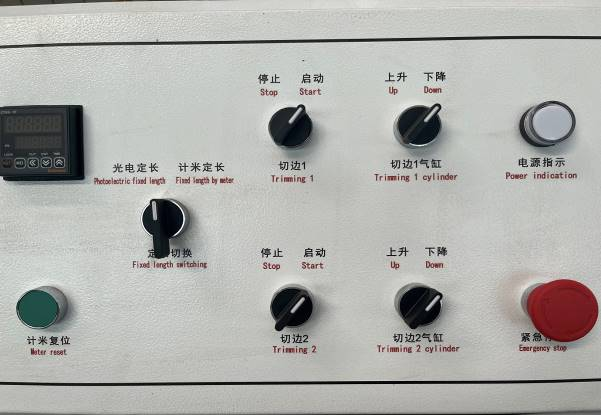

4.Electric box independent control use PLC control and multifunction ,cutting machine more easy operation and use.

5.Upgrade cutter More durable Long service life.

6.Upgrade cutter Overall size lengthen ,old type1470x2500x1900mm , Upgrade cutter 1950x2500x1900mm: machine more stable .

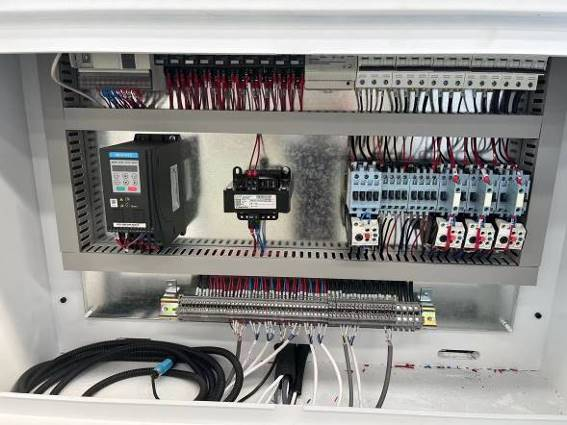

7.Upgrade cutter added motors and air cylinder quantity Lengthened guide design etc, In electrical box have more function, it add Contactor 6pcs, intermediate relay 5pcs and buttons too …

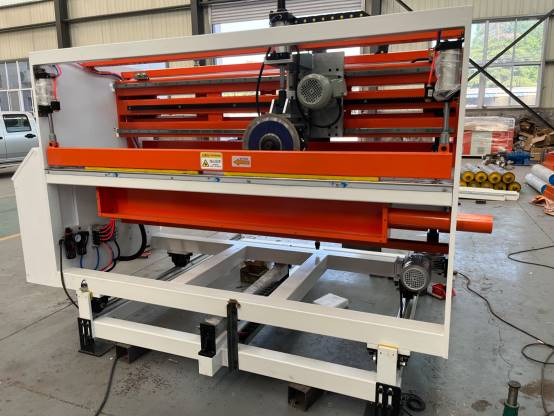

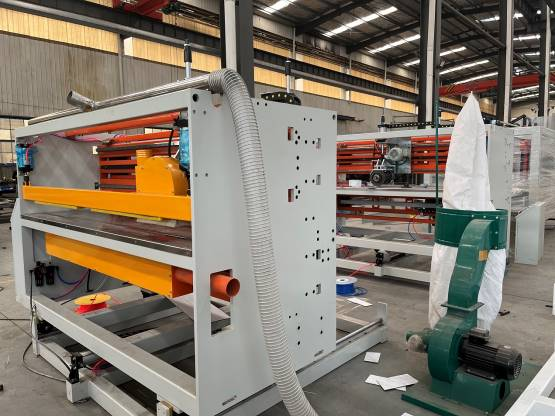

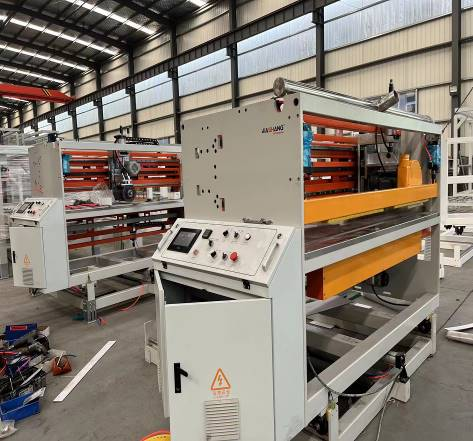

8.upgrade cutter more details please check belows photo:

1 2 3 4 5 6 7
