PVC PE PP Single Wall Corrugated Pipe Extrusion Line for Electrical Use

have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.

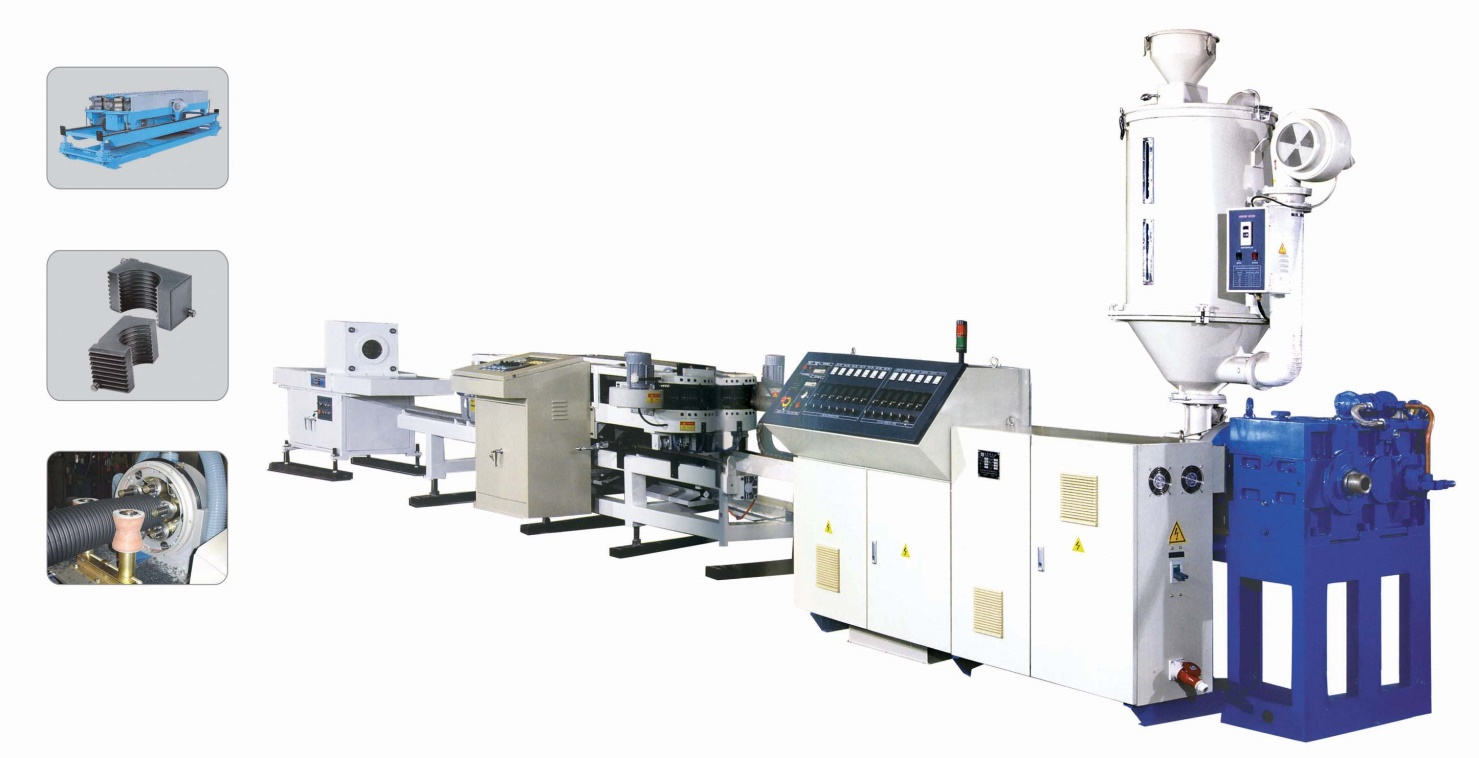

This series  Single and Double Wall Corrugated Pipe Extrusion Machine for Electrical Use can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

The Single and Double Wall Corrugated Pipe Extrusion Machine for Electrical Use are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

Single and Double Wall Corrugated Pipe Extrusion Machine for Electrical Use developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit

We can design the speed with 10-12m/min ,18-20m/min and 25-30m/min with the customer need , contact way : Ms lily , mobile 008615806538967

9

PE single wall corrugated pipe machine   12m/min

Hopper and  vacuum loader

1.SJ 55/30 single screw Extruder

Match vacuum feeder and loader

2.Die head and mould (1 6mm .23mm) One mould for two sizes

3.Forming machine

4.double positon winder

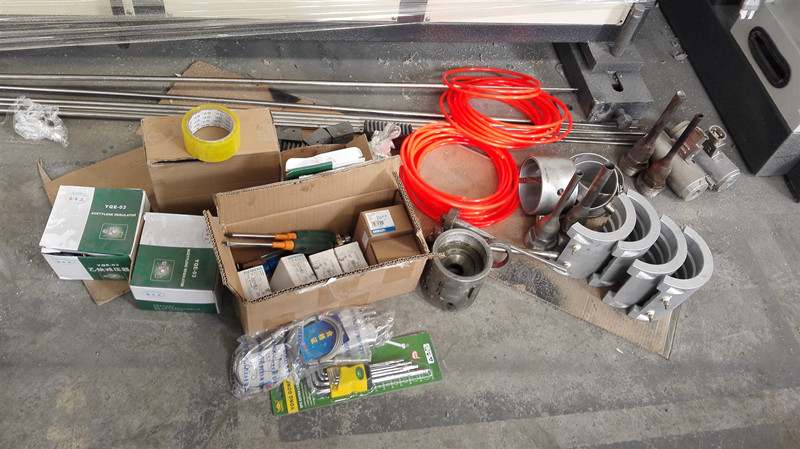

5.spare parts free

10 11 12

One mould for two sizes

Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.

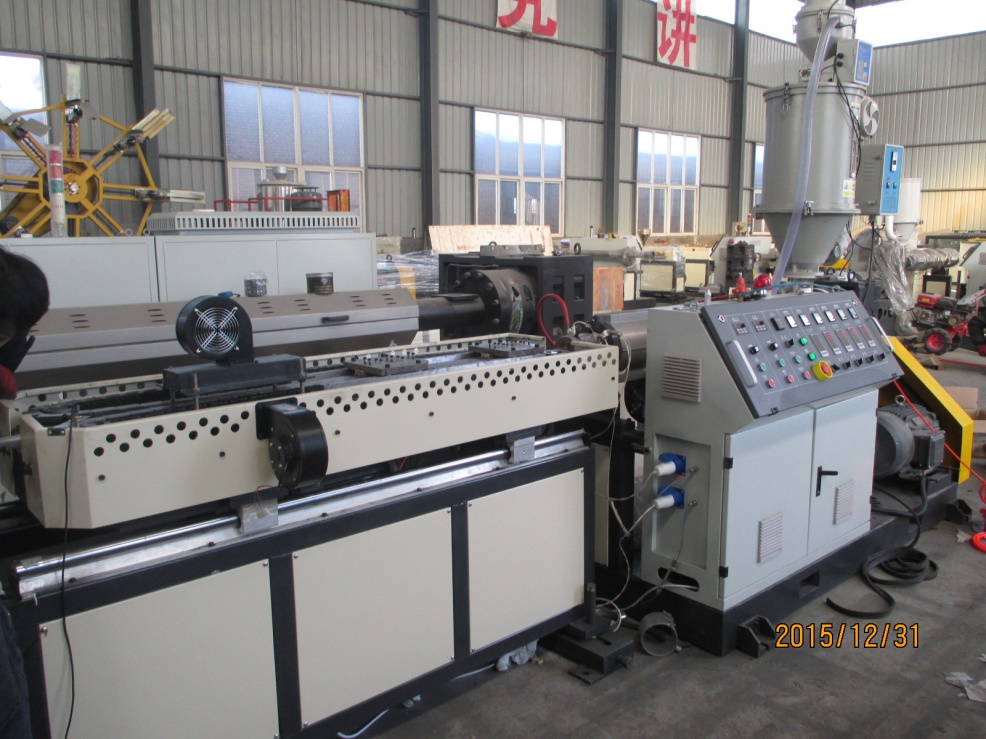

High Speed Forming Machine,which can adjust up and down to make different sizes

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 20-30m/min working
speed.It is added water cooling and fan cooling two system.

High Speed Forming Machine,which can adjust up and down to make different sizes

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 20-30m/min working
speed.It is added water cooling and fan cooling two system.

Product application:conduits for wire,washing machinery pipe ,basin shrinking pipe ,medical tube etc .

13

Welcome to visit our factory in the beautiful city of Qingdao and discuss cooperation. 24 hours service for you, Purchase pvc foam board machine our Qingdao Jiashang is best your choice .
