PVC multi-layer co-extrusion pipe line ( three layers pipe line )

DESCRIPTION OF GOODS:

Name of Commodity

PVC multi-layer pipe line ( three layers)1.Screw loader unit2.SJSZ51/105 Conical Double Screw Extruder

3.SJSZ51/105 Conical Double Screw Extruder

4.SJ 30/25 Co-extruder

5.pipe diameters 1/2inch ,1’’,2’

6.6m vacuum cooling tank

7.Hauling off unit

8.Non-dust cutter

9.Stacker

图片 1 图片 2

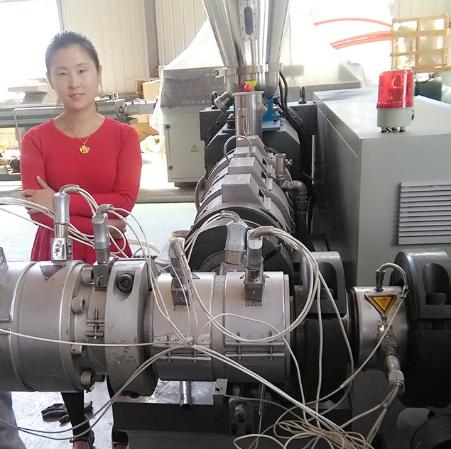

PVC multi-layer pipe line ( three layers)1.Screw loader unit 2.SJSZ65/132 CONICAL TWIN SCREW EXTRUDER WITH servo motor

3.SJSZ51/105 Conical Double Screw Extruder

4.SJ 30/25 Co-extruder

5.pipe diameters 3’’,4’’,5’’,6’’,8’’

6. 6m vacuum cooling tank

7 .three caterpillar Hauling off unit

planetary cutter

Stacker

PVC multi-layer pipe line ( three layers)1.Screw loader unit 2.SJSZ80/156 CONICAL TWIN SCREW EXTRUDER WITH servo motor

3.SJSZ65/132 Conical Double Screw Extruder

4.SJ 30/25 Co-extruder

5.pipe diameters 10’’,12’’,14’’,16’’

6.6m vacuum cooling tank

7.four caterpillar Hauling off unit

8.planetary cutter

9.Stacker

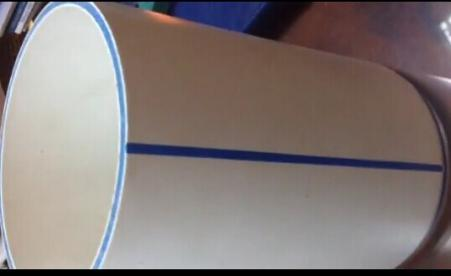

3 layers the outside& inner layer are same material of pvc and  the middle layer is  high filler pvc & recycling pvc , make two making line
Auxiliary machine below:
SWP 630 PVC pipe crusher max diameter 400mm ,thickness below 20mm .with knife material Cr12MOV.
500/1000 HOT AND COLD MIXER

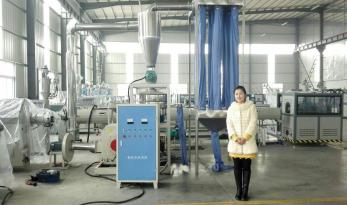

600 PVC pulvertizer WITH 55KW MOTOR

图片 3

20HP WIND COOLING CHILLER WITH PANASONIC COMPRESSOR
SGK250 Full Automatic Belling Machine with U type mould
图片 4
图片 8
图片 5
图片 6
图片 7

Post time: Oct-09-2023
