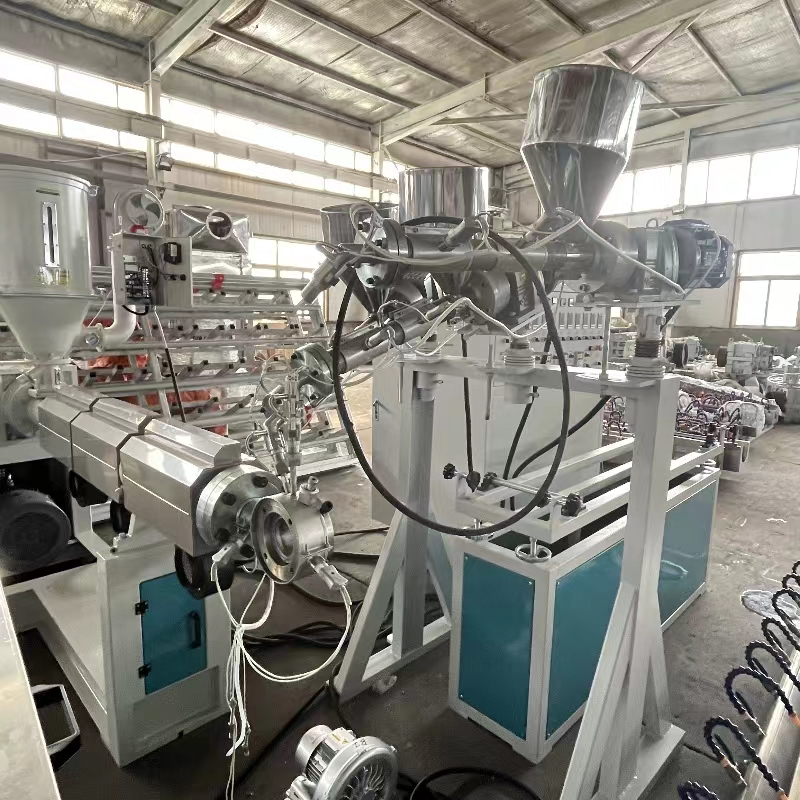

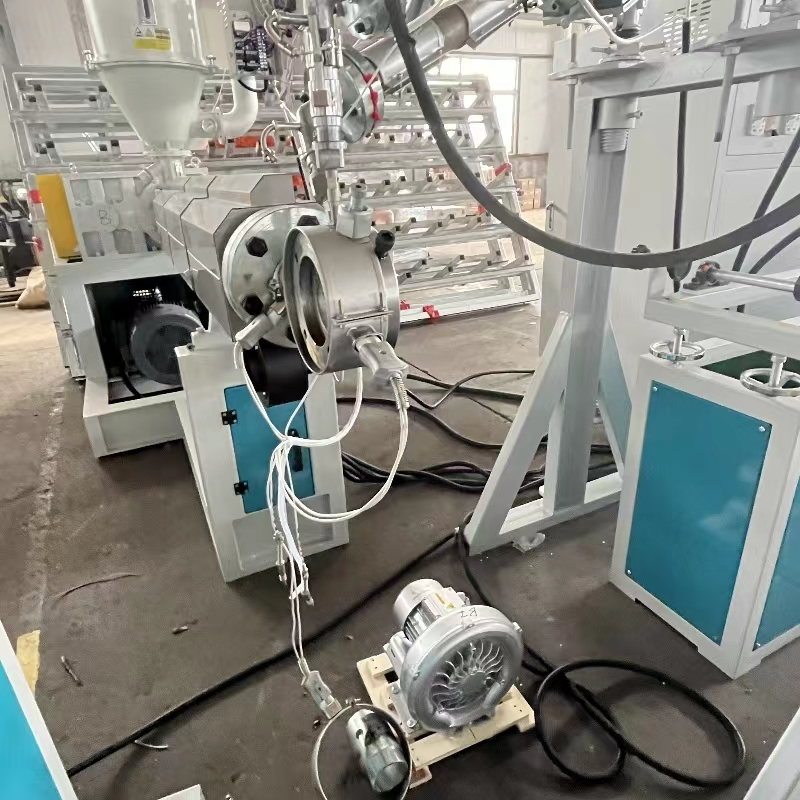

Plastic PVC Soft Pipe Extrusion Machine Line is suitable for producing all kinds of PVC soft pipes. The whole production line consists of the following seven parts:
Working flow:

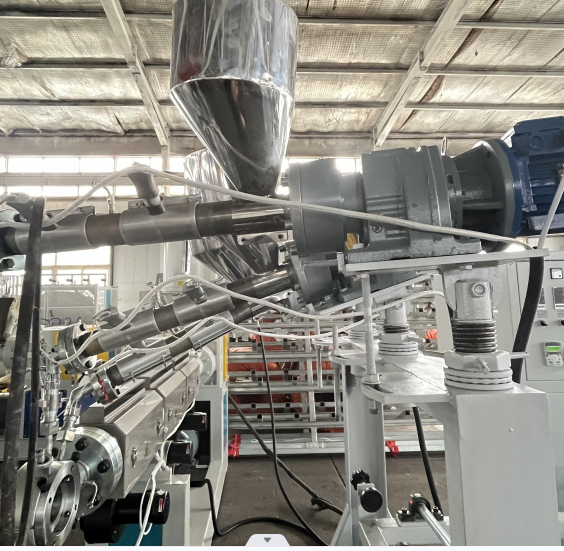

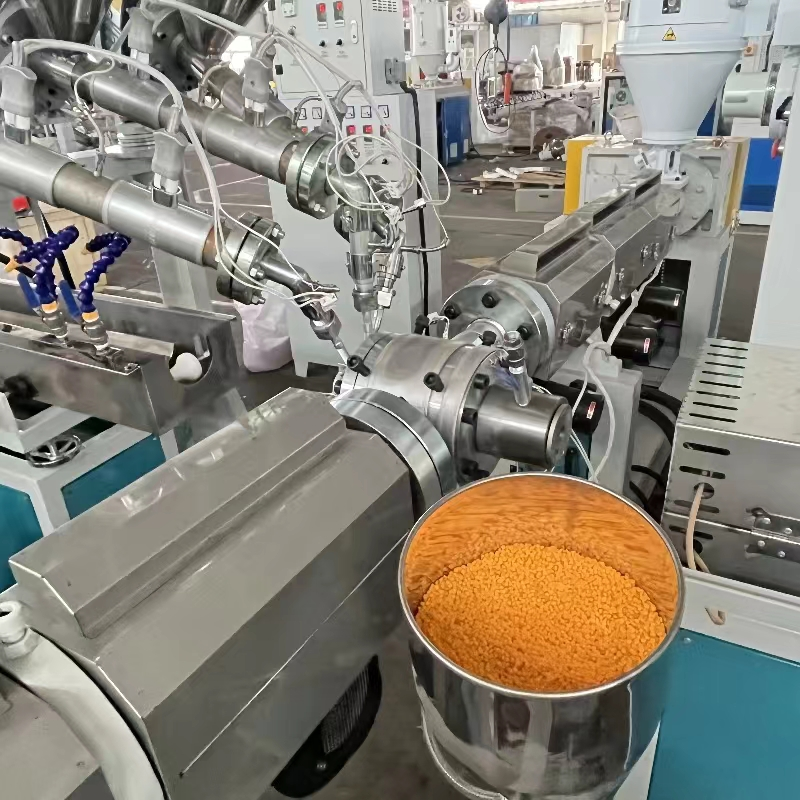

Extruder(2 sets) → forming unit → cooling bath → winder
Main Parameter:
| Model | SJ45 | SJ65 |
| Extruder | SJ45/28 | SJ65/28 |
| Diameter range (mm) | 13-50mm | 64-200mm |
| Output(kg/hour) | 20-40 | 40-75 |
| Installation power(kw) | 35 | 50 |
Applicatoin:

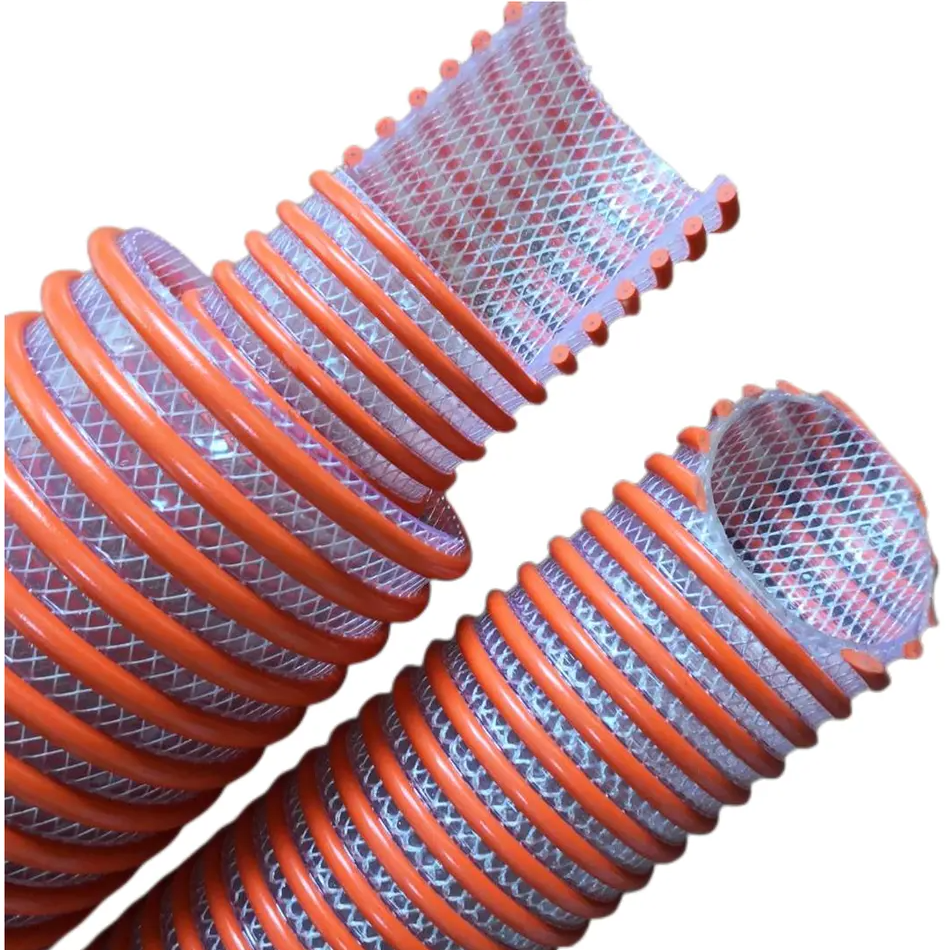

Pipe formed by soft PVC and rigid PVC spring, strengthen pressure. This pipe is has features as: press resistance, corrosion resistance, anti-bending, good liquidity, etc. It is widely used in fields of industry, agriculture, construction and irrigation, etc.

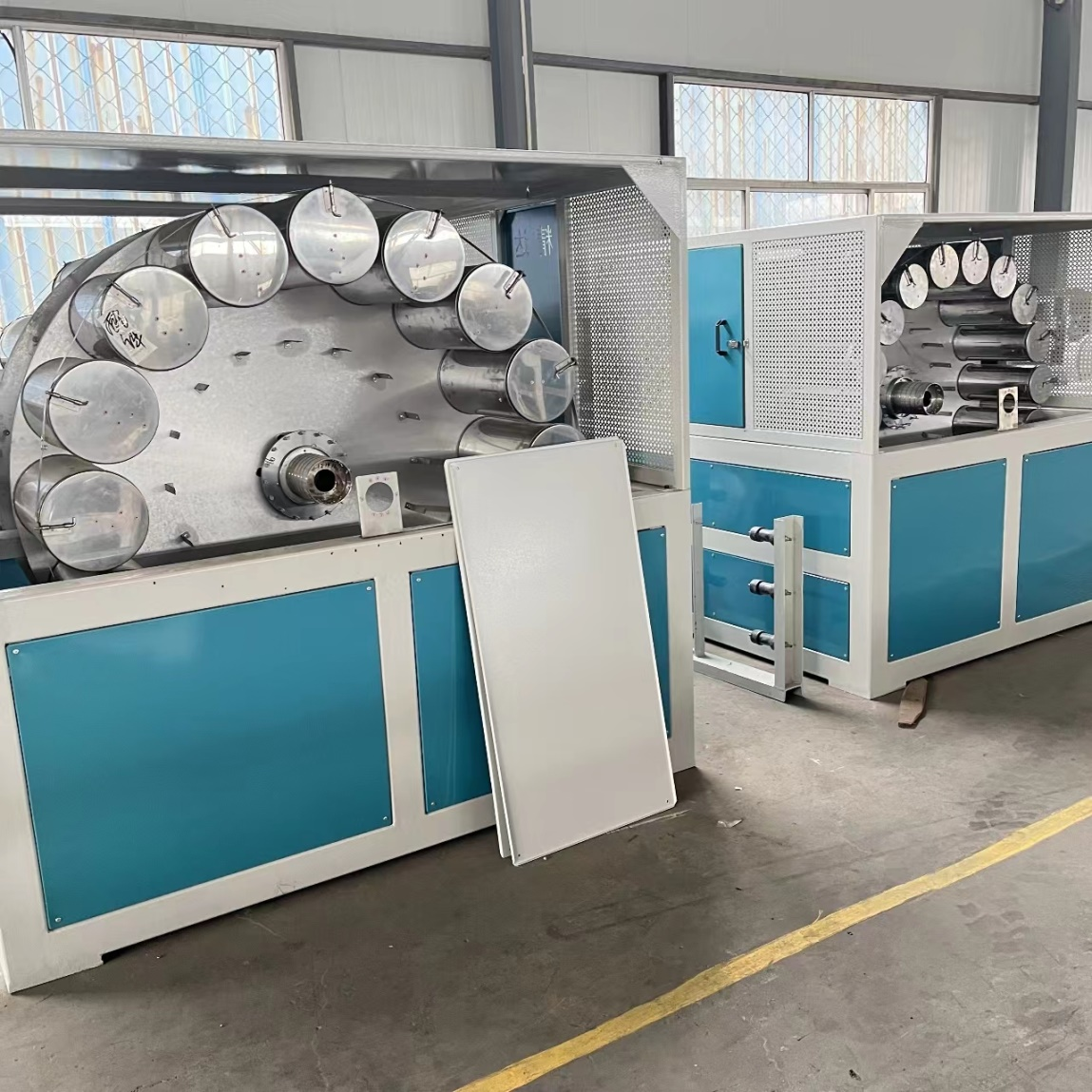

PVC Fiber Reinforced Hose Production Line(plastic machine):
1.This line is suitable for producing PVC fiber reinforced pipes.
2..Meanwhile, through change and increase extruder and others device, PVC garden hose and PVC three layers fiber reinforced pipe also can be produced on this line.
3..This line manufacture the soft hose which owns such features as transparent and no poison, pressure resistance, pull-resist, corrosion-resist, beautiful outlook, soft, light and long lasting.
5..It can be widely used in sanitary foodstuff industry, It is really the best choice for transporting air, water, gas , oil and under the temperature conditions from 10 degree below zero to 65 degree above zero.
Post time: Aug-30-2023
