Muliti-layer CPVC UPVC pipe extrusion line

Short Description:

Plastic Pipe Extrusion mold is a kind of molding mold, but his way of discharging is to achieve through the action of extrusion.It is widely used in aluminum shaped structure and also in plastic parts.In the front end of the extruder, used for making pipe, or profile. In short, the mold is used to shape the tool, this tool is composed of various parts, different mold is composed of different parts, it mainly through the formation of material physical state change to achieve the shape of the object processing.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

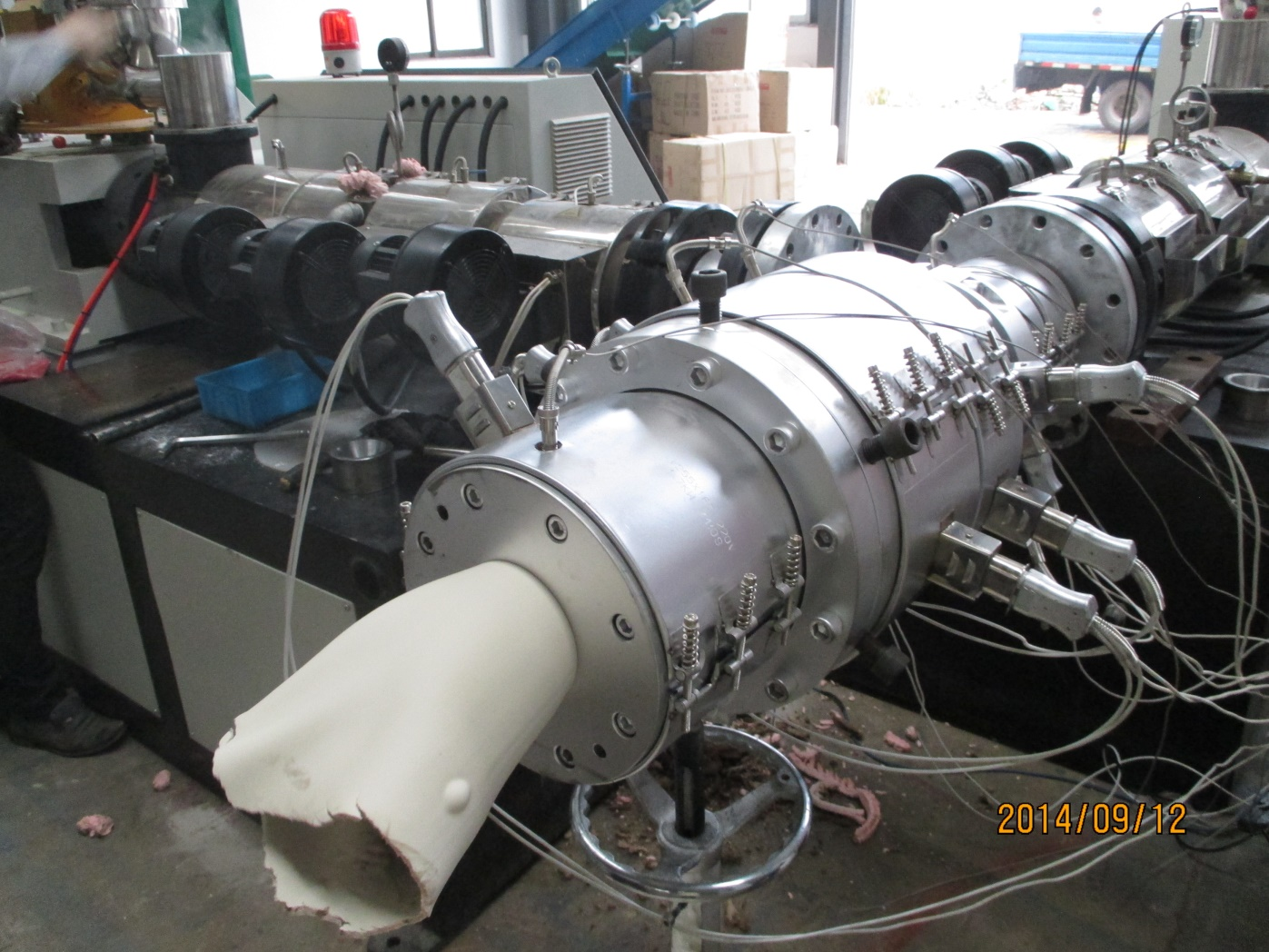

    Muliti-layer CPVC UPVC pipe extrusion line

    52 53

    PVC multi-layer pipe line ( three layers)

    1.Screw loader unit

    2.SJSZ65/132 Conical Double Screw Extruder

    3. SJSZ51/105 Conical Double Screw Extruder

    4.SJ 30/25 Co-extruder

    5.pipe diameters 3’’,4’’,5’’,6’’,8’’

    6. 6m vacuum cooling tank

    7 .three caterpillar Hauling off unit

    8. planetary cutter

    9. Stacker

    54
    55

    PRODUCT SPECIFICATIONS

    Item Mould
    Function Shaping pipes
    Diameter 20-630mm and customized
    Material 40Cr or steel
    56
    57
    58

    Plastic Pipe Extrusion mold is a kind of molding mold, but his way of discharging is to achieve through the action of extrusion.It is widely used in aluminum shaped structure and also in plastic parts.In the front end of the extruder, used for making pipe, or profile. In short, the mold is used to shape the tool, this tool is composed of various parts, different mold is composed of different parts, it mainly through the formation of material physical state change to achieve the shape of the object processing.

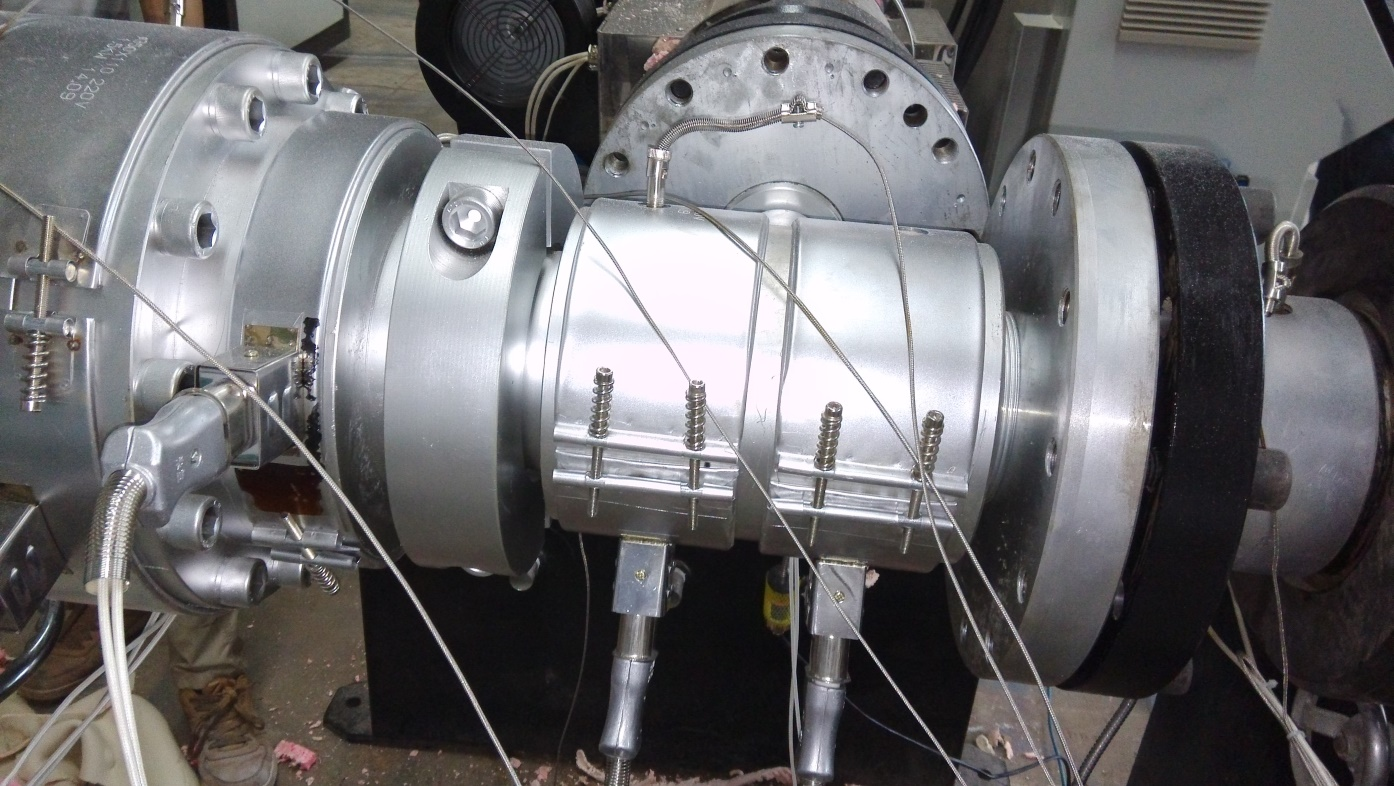

    This mould 3 layers the outside& inner layer are same material of pvc and  the middle layer is  high filler pvc & recycling pvc , make two making line

    Others auxiliary machine :
     SWP 630 PVC pipe crusher max diameter 400mm ,thickness below 20mm .with knife material Cr12MOV.

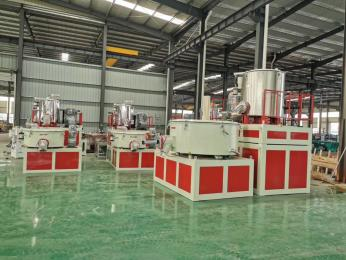

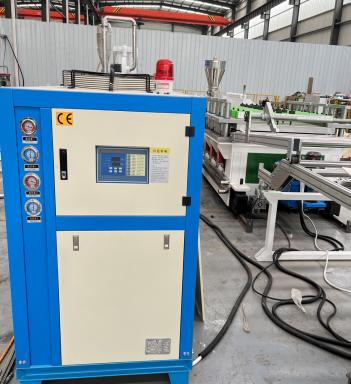

    500/1000 HOT AND COLD MIXER WITH 75KW INVERTER 20HP WIND COOLING CHILLER WITH PANASONIC COMPRESSOR

    60 59

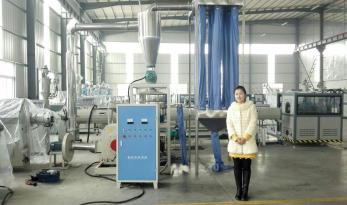

    600 PVC pulvertizer WITH 55KW MOTOR 61 62
    63
    64
